C2 Stray Light

The high-frequency pattern of stray light in C2 changes noticeably three times during the mission. These images are "sharpened" processed monthly-minimum background images in units of DN/s scaled between +/-200. The radial features in these images are elements of the K-corona remaining in the background image.

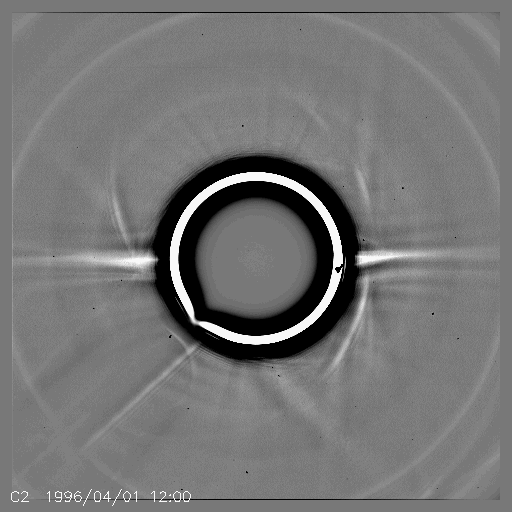

Pre-interruption:

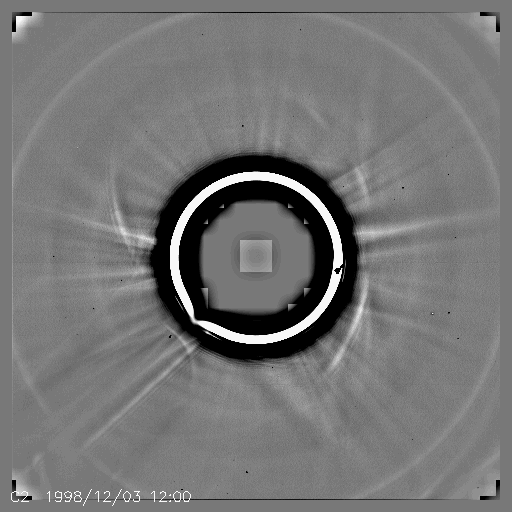

1998/10/13:

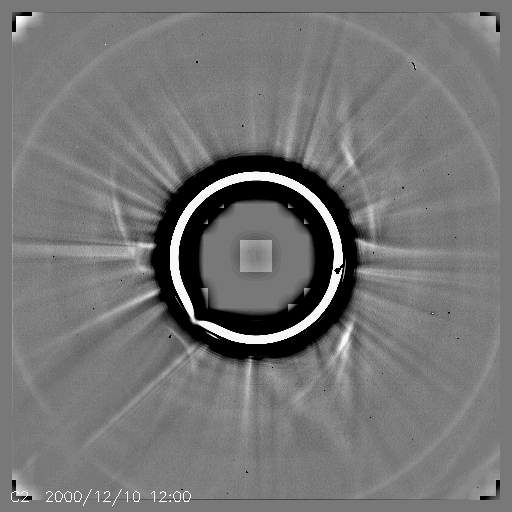

2000/12/02:

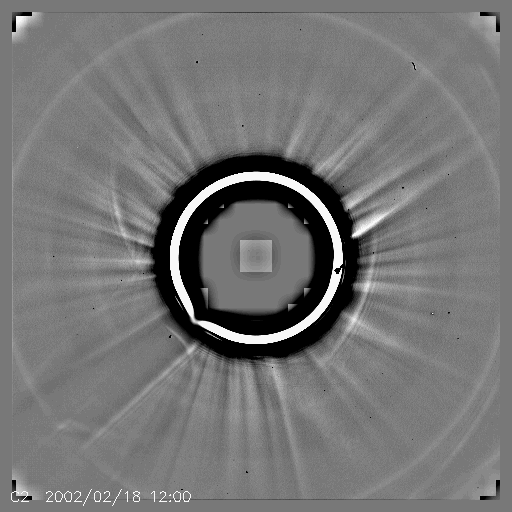

2002/02/06:
